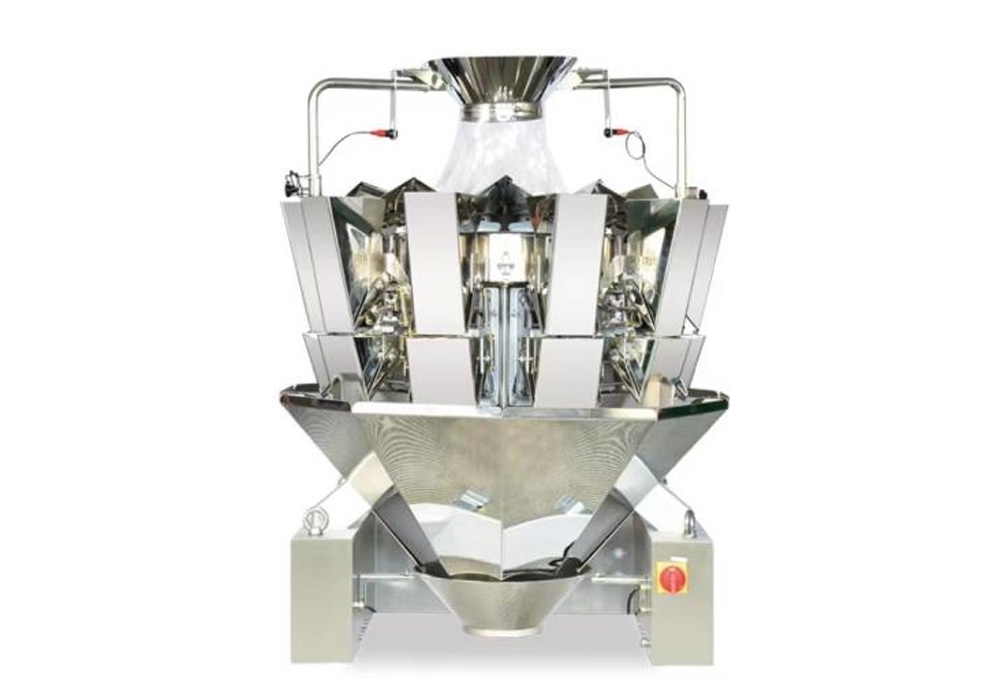

Electronic Weighing Scale 10-head, 14-head, 16-head, and 4-head linear scales

Name: Electronic Weighing Scale 10-head, 14-head, 16-head, and 4-head linear scales
SKU: 0

Electronic weighing systems 10-head, 14-head, 16-head, and 4-head linear scales

WhatsApp

Applicable Products

Applicable bag type

Machine advantage

Parameter table

Customization options

For fully automated packaging production, the necessary supporting equipment must first be in place.

Electronic weighing systems: 10-head, 14-head, 16-head, and 4-head linear scales

For fully automated packaging production, the necessary supporting equipment must first be in place.

Electronic weighing systems: 10-head, 14-head, 16-head, and 4-head linear scales

4 linear scales

10-head combination scale

14-piece combination scale

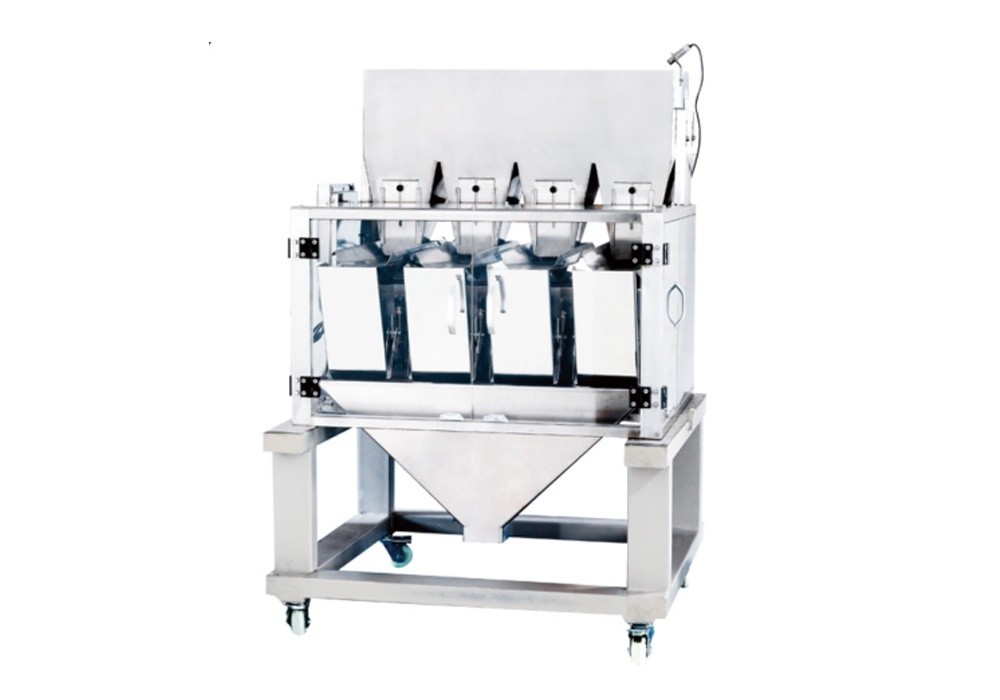

4 linear scales

Name	4-head 3-liter combined scale
Materials	SUS304 stainless steel plate / pattern plate
Weighing range	3-6500g
Theoretical speed	45 b ag/min (depending on material status)
Theoretical accuracy	0.2-2g (depending on the weighing speed, the state of the supply product and the target weight
Hopper volume	3 L
Touchscreen size	7-inch color step screen
Storable program	99 species
Language	Multi-lingual
Power requirement	AC110V/ 220V50HZ/60HZ
Power consumption	2.0-3KW
Packing size	1 350* 945* 97 0MM
Net weight	240 KG

10-head combination scale

Name	10-head 1.6-liter combined scale
Materials	SUS304 stainless steel plate / pattern plate
Weighing range	5- 6 500g
Theoretical speed	15-60 b ag/min (depending on material status)
Theoretical accuracy	±0.3-3 g
Hopper volume	1.6 L
Touchscreen size	7-inch color step screen
Driving mode	Step motor
Storable program	99 species
Language	Multi-lingual
Power requirement	220V/50/ 60HZ
Power consumption	2.0KW
Packing size	1 30011001300MM
Net weight	430KG

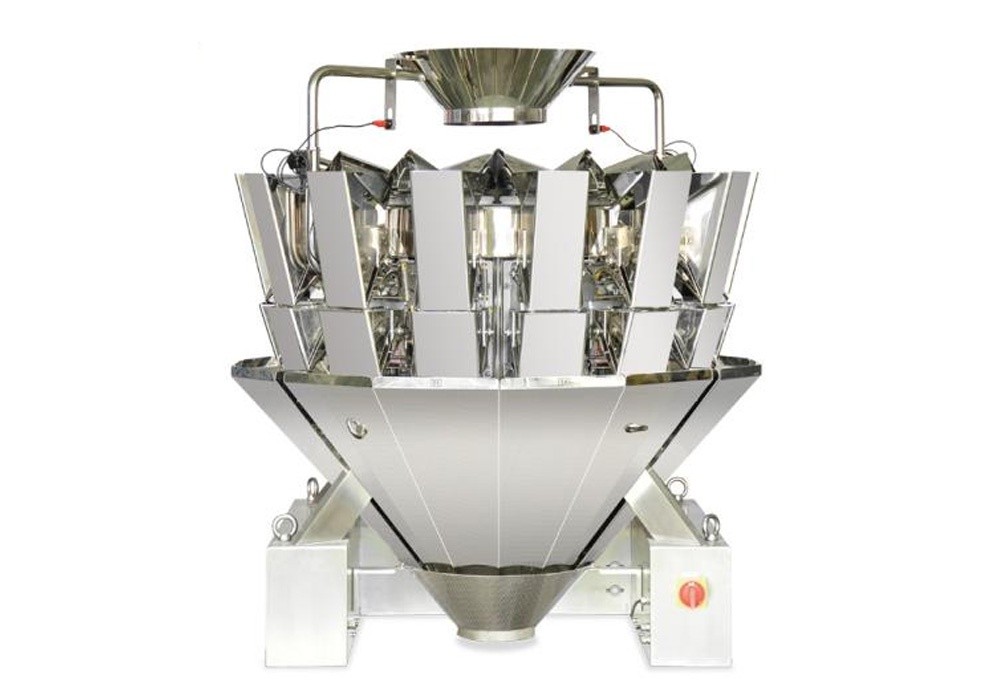

14-piece combination scale

Name	1 4-head 1.6-liter combined scale
Materials	SUS304 stainless steel plate / pattern plate
Weighing range	3-6500g
Theoretical speed	120WPM
Theoretical accuracy	0.3-2 g
Hopper volume	1.6 L
Touchscreen size	10.4-inch screen
Driving mode	Step motor
Storable program	99 species
Language	Multi-lingual
Power requirement	220V 50/60 HZ
Power consumption	2 .3 KW
Packing size	1 350* 1100* 1300 MM
Net weight	430 KG
Warranty	1 year
