Fully Automatic Feed Receiver (Linear Type) LPE-LFE20
Designed for use with weighing equipment, suitable for most granular materials.
canned and bottled liquids, sauces
1. Designed for use with weighing equipment, suitable for most granular materials.
2. The material receiving station features a vibration function, effectively addressing the packaging challenges of most granular materials.
3. Utilizing internationally renowned Siemens PLC control systems and SICK sensor technology from Germany ensures efficient and stable equipment operation.
4. Highly versatile, it can accommodate tanks of various specifications and shapes as well as different material types to meet diverse production requirements, significantly reducing operational costs for users.
5. Low maintenance costs: The equipment features a simple mechanical structure that is easy to operate, requires minimal upkeep, and allows convenient repairs, thereby reducing production losses caused by downtime for maintenance.

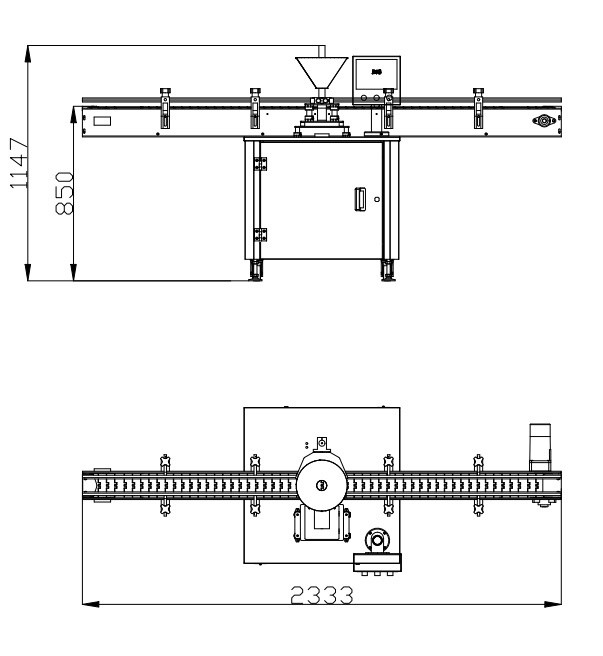

Device Dimension Diagram:
1. Production speed: 10–30 cans/min (adjustable, depending on the can material, size, and fluidity of the filling material)
2. Applicable bottle/can height: 30–220 mm (Additional molds required for wide height ranges)
3. Applicable bottle/drum diameter: 35–138 mm
4. Gas consumption: 80 L/min
5. Operating pressure: 0.6 MPa
6. Operating Power Supply: Single-phase AC 220 V, 50/60 Hz
7. Total Power: 0.3 kW
8. Net weight: approximately 150 kg; Gross weight: approximately 200 kg
9. Belt height: 850 mm
10. Main material of equipment exterior: 304# stainless steel
11. Equipment dimensions: approximately 2333 mm in length, 918 mm in width, and 1147 mm in height
12. Dimensions of packaging wooden box: length 1100 mm, width 880 mm, height 1690 mm
Configuration Table (Standard configuration; may vary slightly in actual production and is subject to final specifications)
