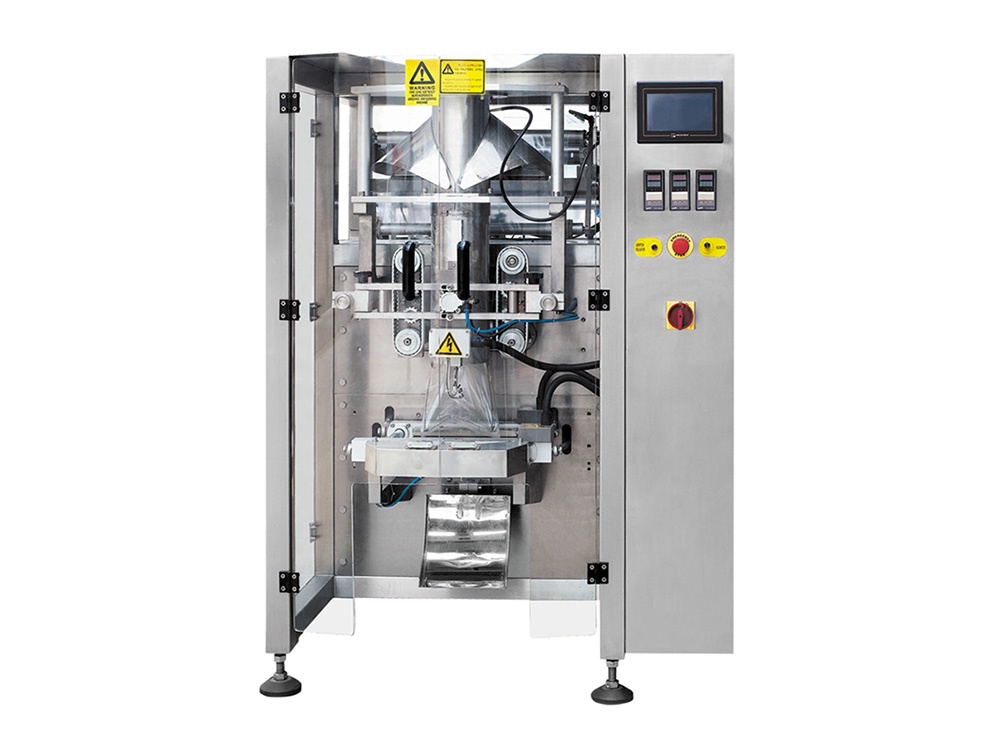

Fully Automatic Vertical Granule Packaging Machine (for roll film and Premade bags) GQ-420/520/720

Name: Fully Automatic Vertical Granule Packaging Machine (for roll film and Premade bags) GQ-420/520/720
SKU: 0

The PLC fully computerized control system features a human-machine interface and a large touchscreen display, offering simple and intuitive operation.

16615675260、18668973789

0086 13688630116

pangqin@guoqiangpackaging.com

WhatsApp

Applicable Products

Applicable bag type

Machine advantage

Parameter table

Customization options

Suitable for automatic packaging of granular and flaky materials, such as snacks, puffed foods, dried fruits, candies, rice, salt, pet food, etc.

Packaging Shape:

Pouch-shaped bag

Self-standing folded corner ba

Hangable pocket bag

Machine Introduction and Parameters:

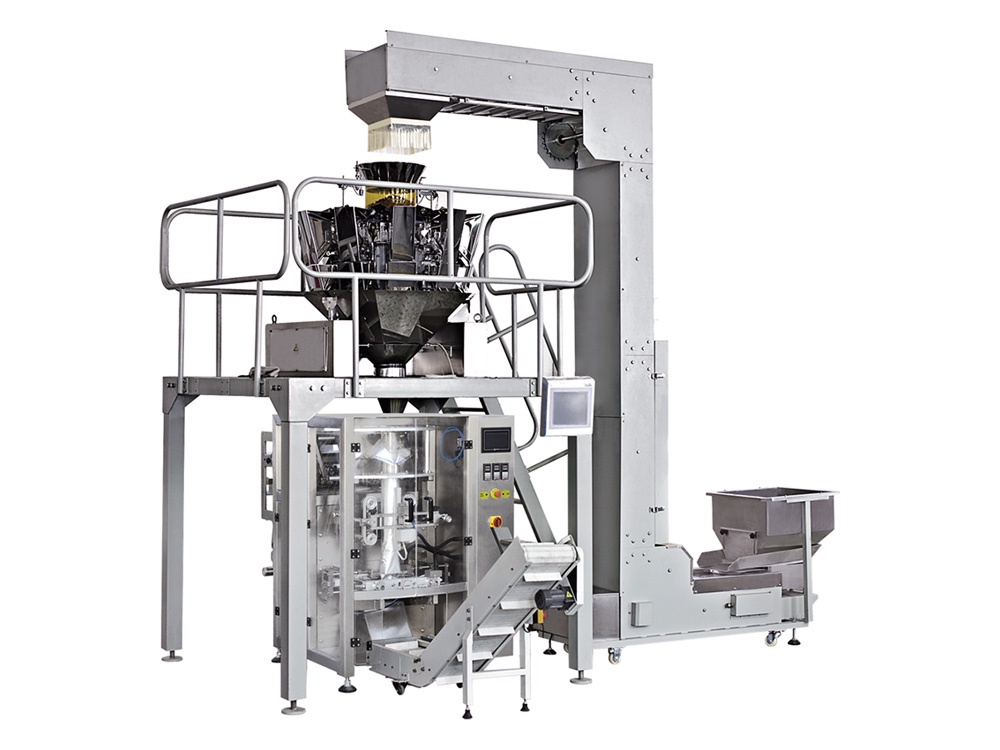

The packaging machine consists of five components.

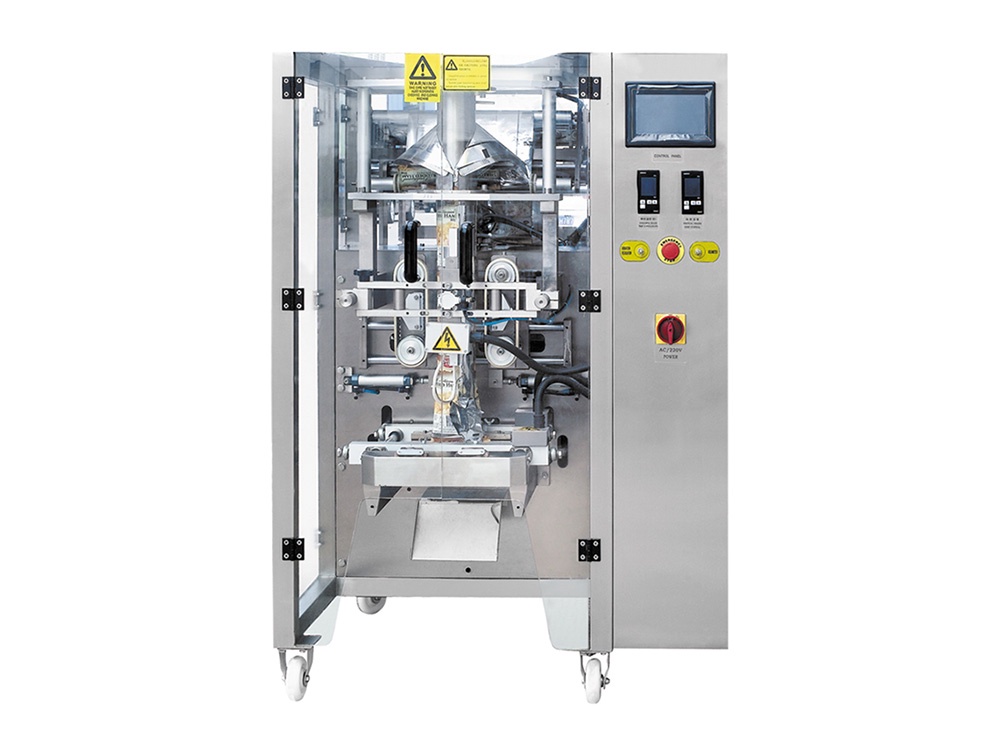

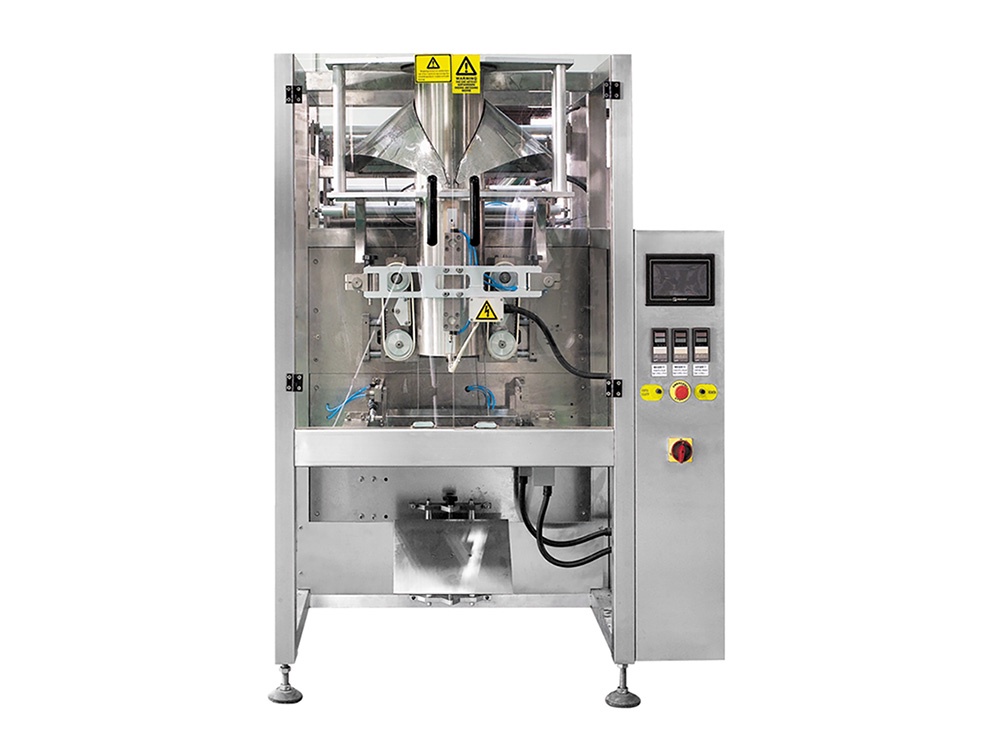

Host Model:

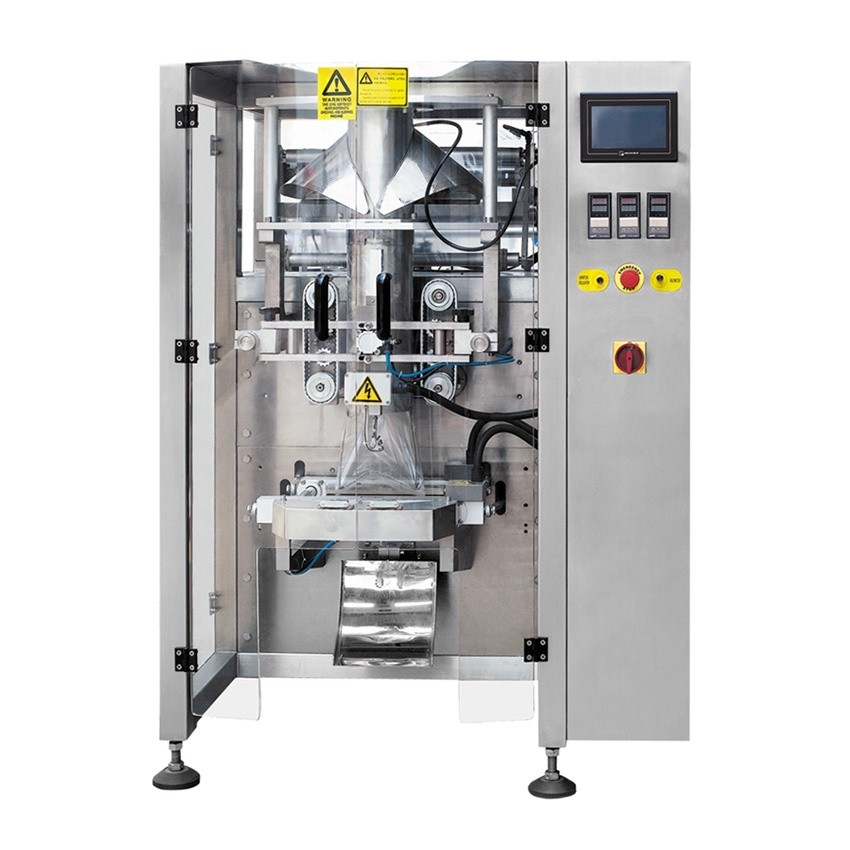

GQ-420

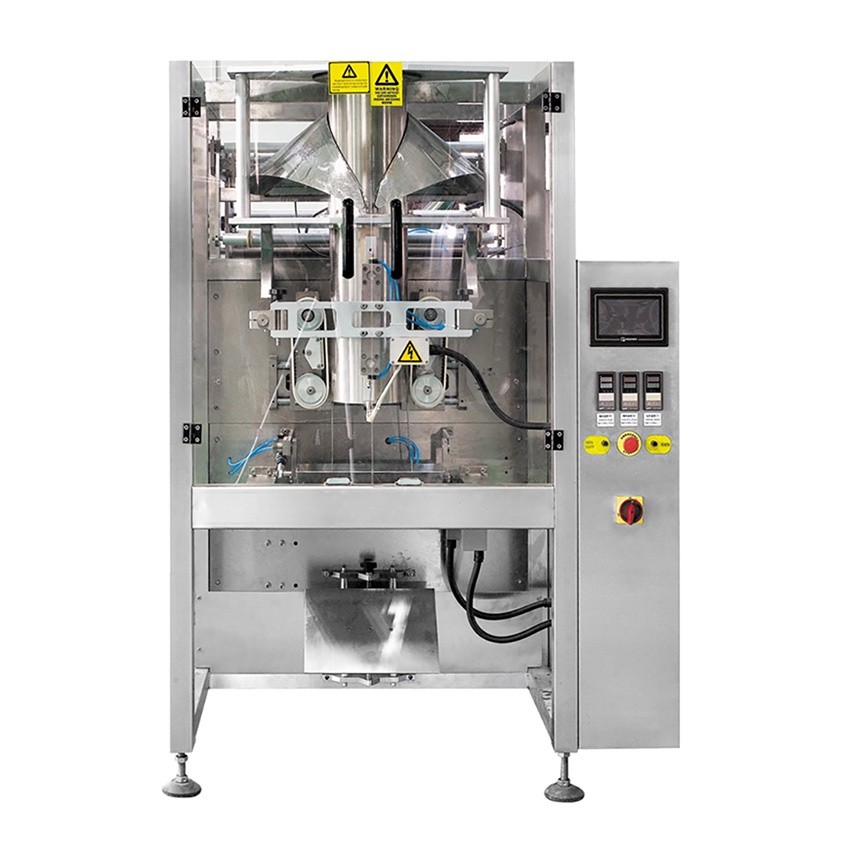

GQ-520

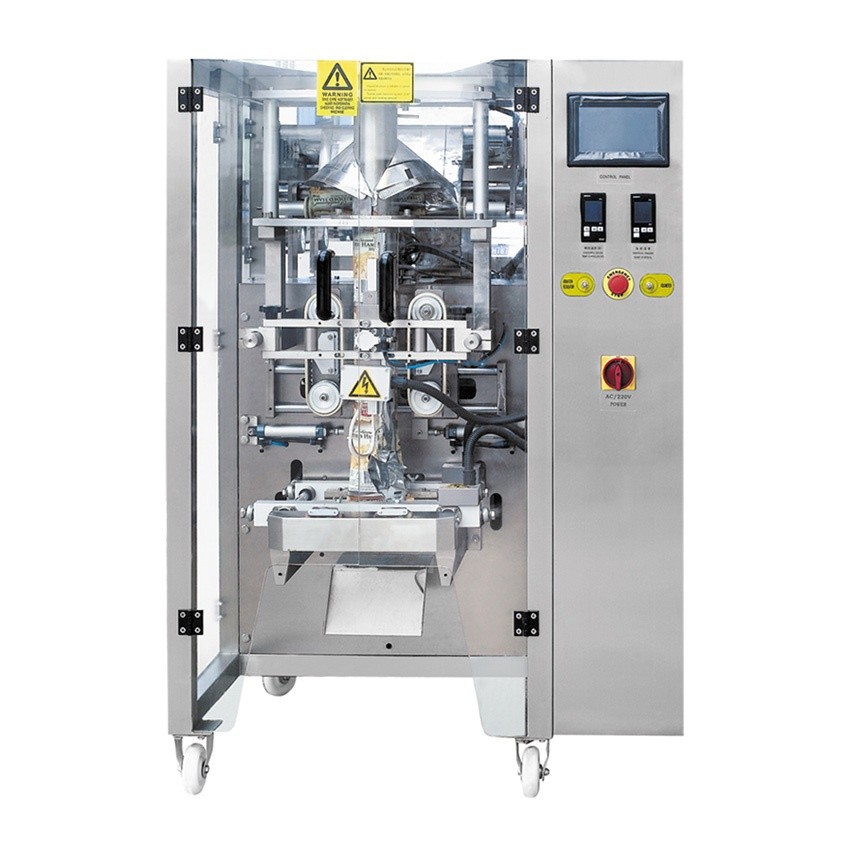

GQ-720

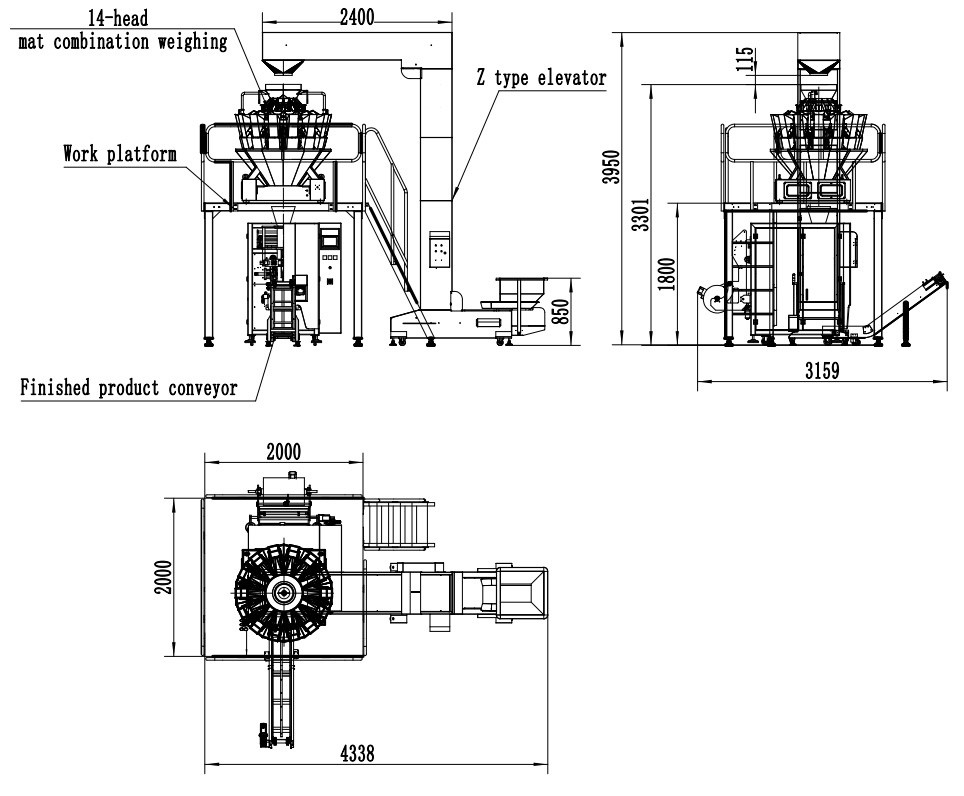

The packaging machine also consists of the following components.

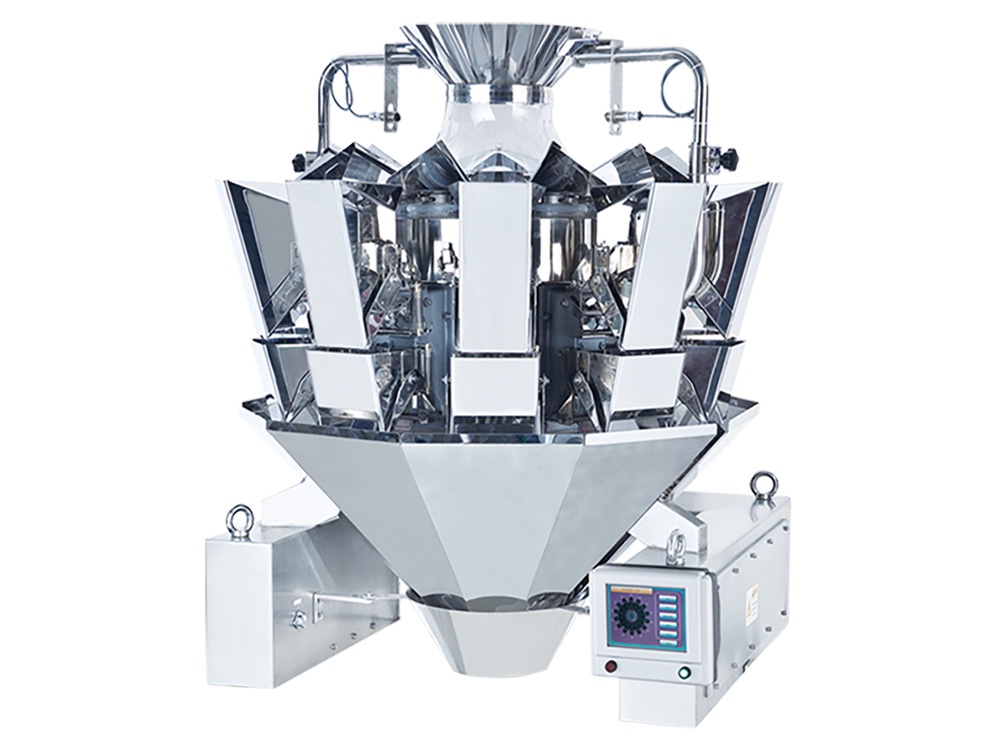

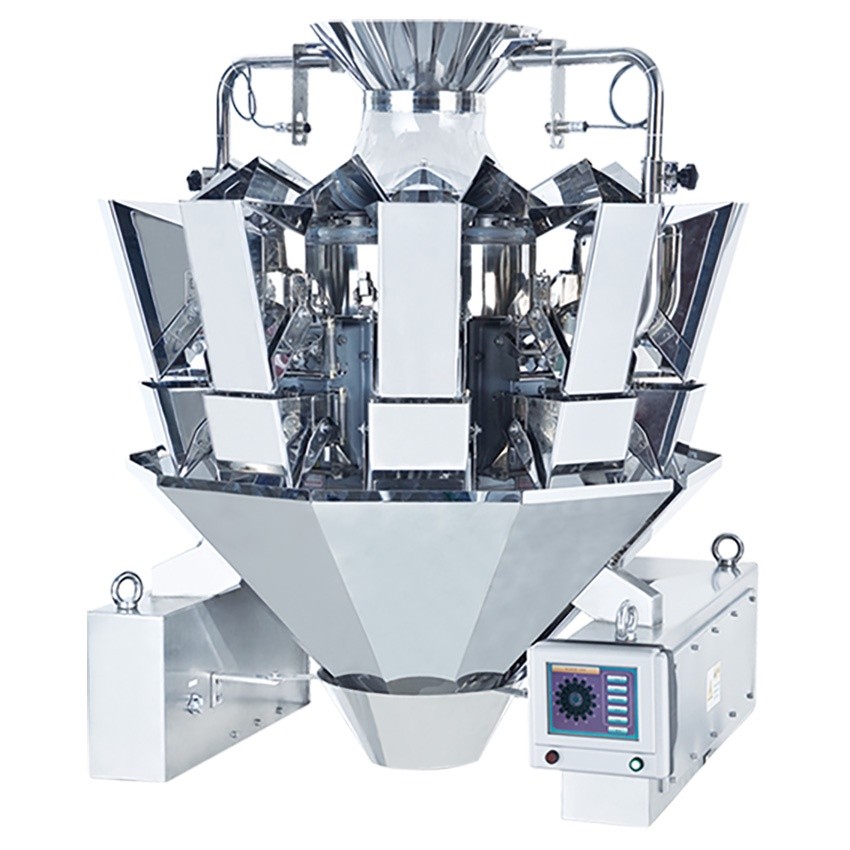

Electronic Scale

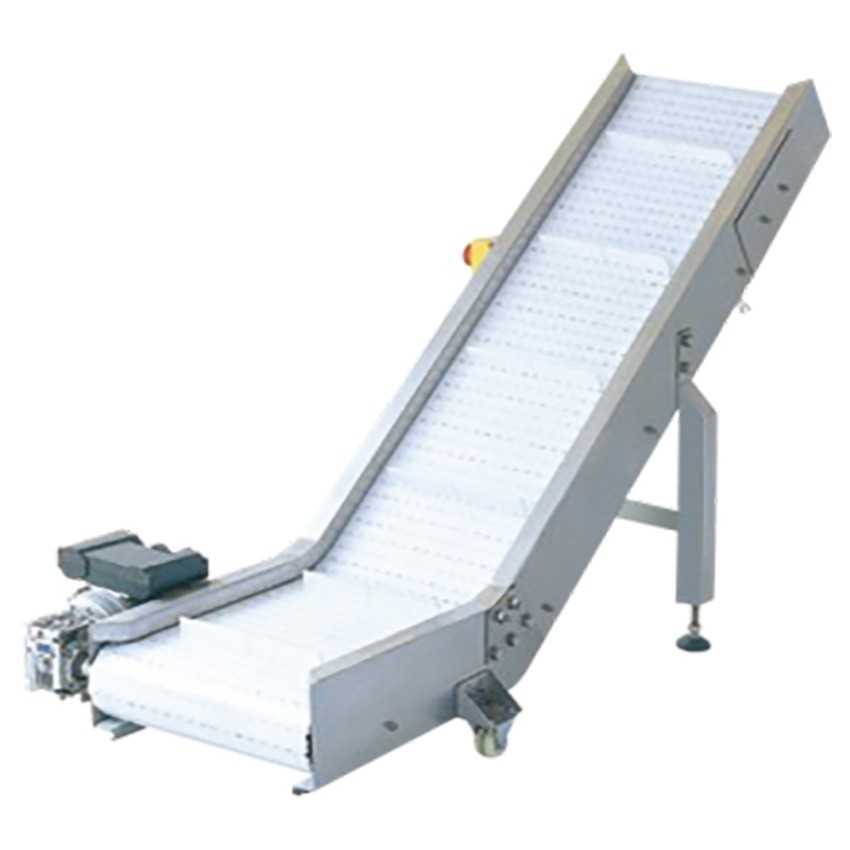

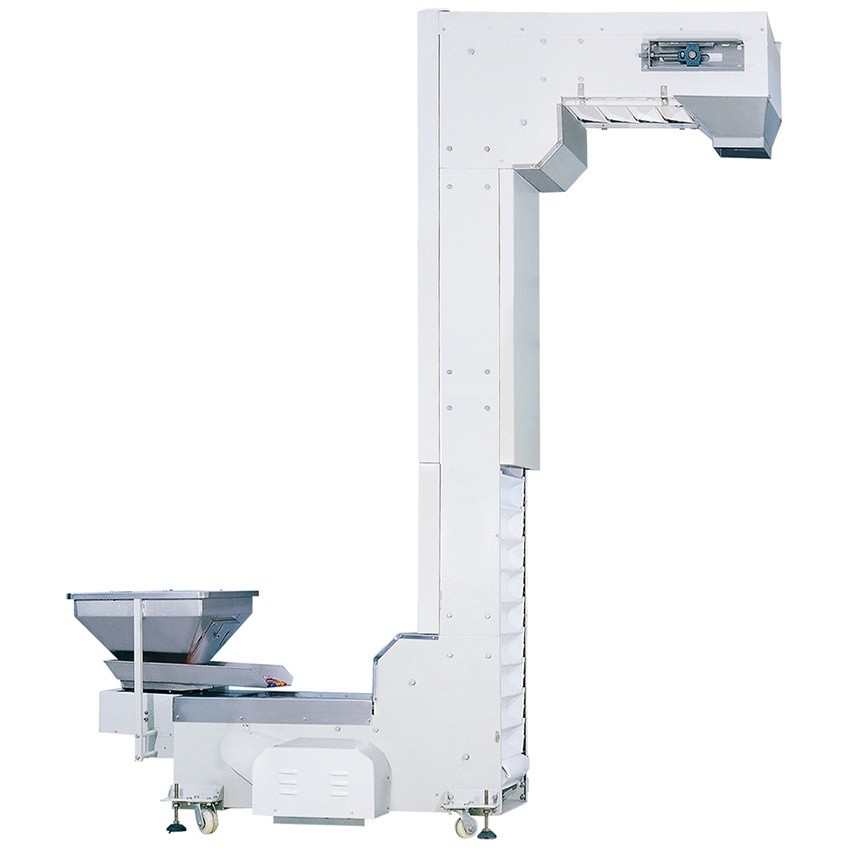

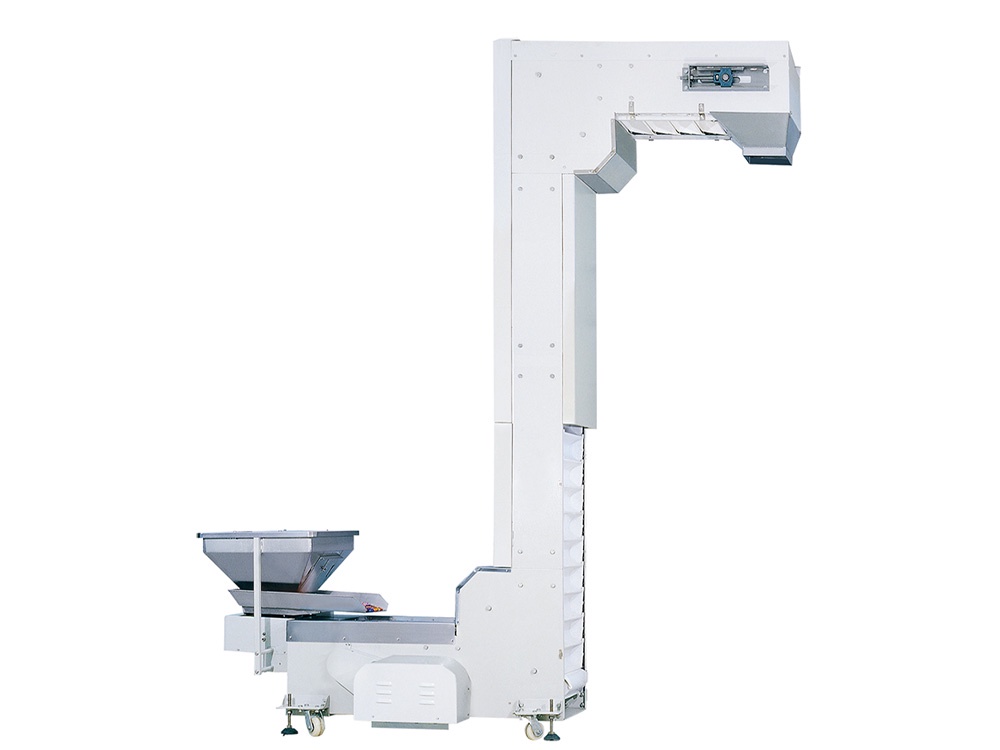

Z Type Feeder

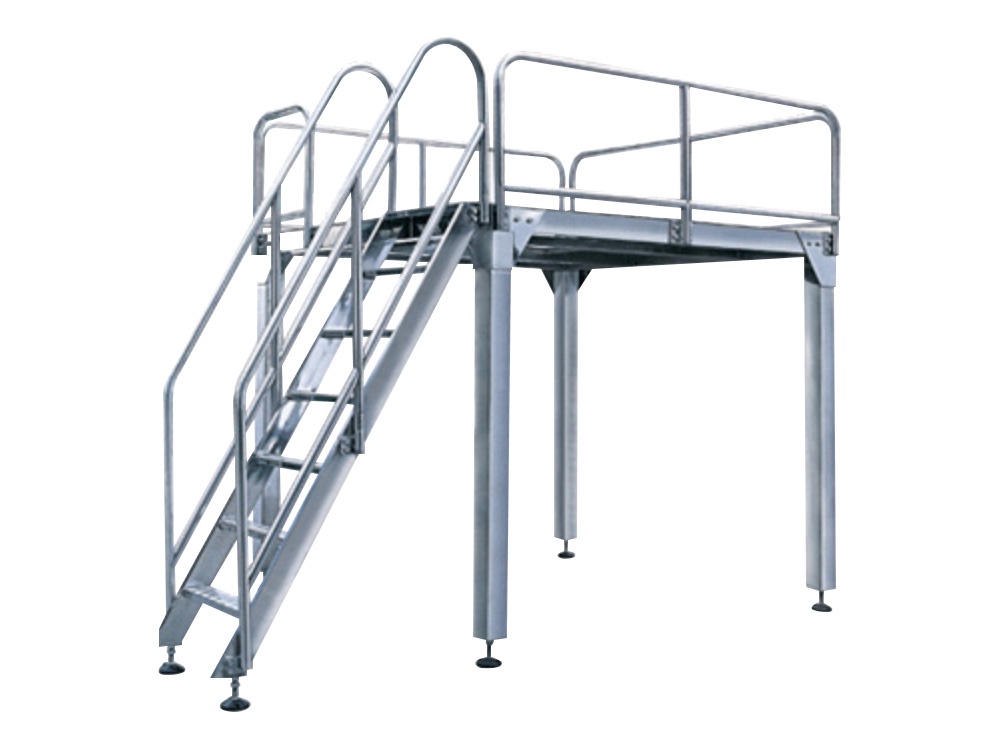

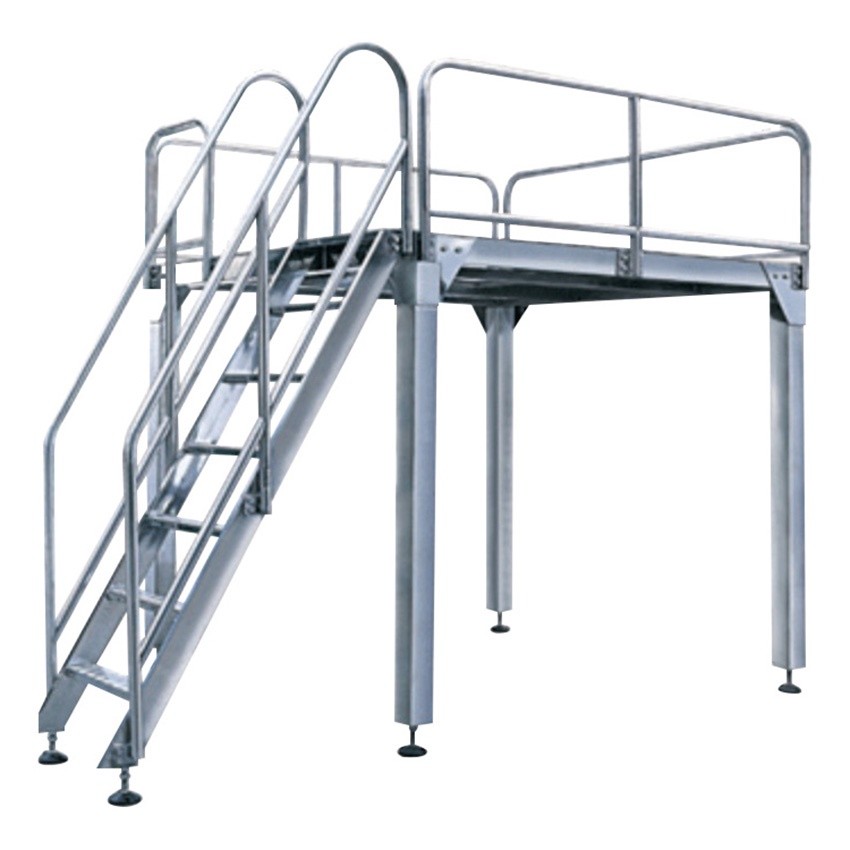

Support Platform

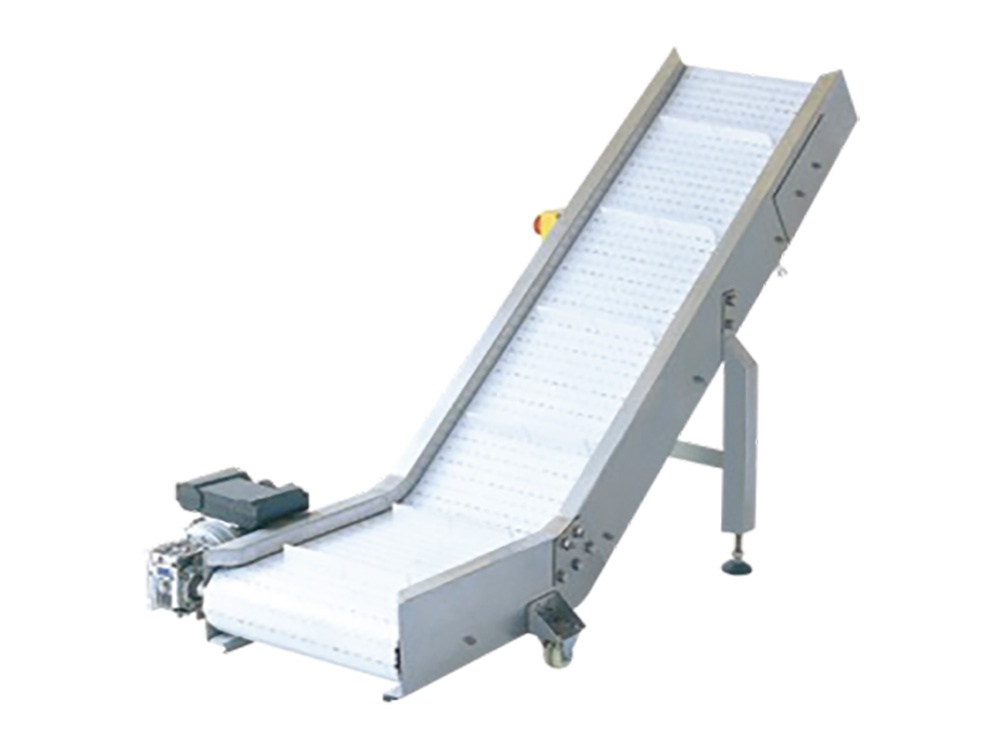

Ready-Made Conveyors

Main Performance and Structural Features

(1) The PLC fully computerized control system features a human-machine interface and a large touchscreen display, offering simple and intuitive operation.

(2) Servo-driven film transport system with pneumatic control, featuring precise positioning and outstanding overall performance.

(3) Equipped with a smart thermostat for precise temperature control, ensuring aesthetically pleasing and smooth sealing surfaces.

(4) High-precision weight sensors enable instantaneous accurate measurement.

(5) Comprehensive automatic alarm protection functionality that minimizes wear and tear.

(6) This machine can automatically complete the entire packaging process, including material feeding, weighing, bag formation and filling, date printing, inflation (or deflation), and final product output.

(7) Bag manufacturing options: This machine can produce pillow-shaped bags, vertical corner-folded bags, or bag with hanging holes according to customer requirements.

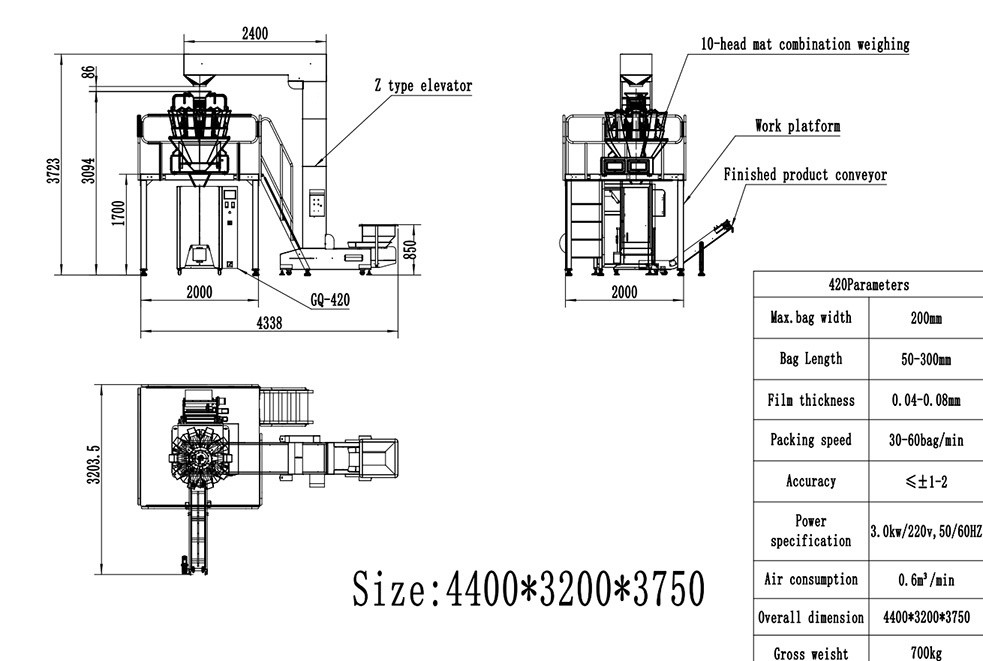

Technical Specifications of GQ-420

Item	Model GQ-420 Vertical form-fill-seal machine
Packaging speed	40- 60bag/min
Bag-making size	(W)60-200 mm(L)50-3 00 mm
Bag-making type	Pillow-shaped bag (Pillow), Stand-up bag, Hole punching device
Packaging film material: Film material:	POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.
Film thickness	0.04-0.08mm
Maximum Film Width / Max film width	420 mm
Measurement Range/Filling Range	Max5-2000 ml
Weighting accuracy of electronic combination scales	±0.1-2g
Number of compartments on an electronic scale	10、14、16
Volume of the electronic scale combination for weighing purposes	1.6 L 、2.5L
How to Select an Electronic Combination Scale Device	These components are referred to as feeding bins, aggregate bins, and material distribution devices.
How to Choose an Automatic Feed Machine	Z-shaped feeder, chain plate inclined feeder
Air Consumption / Air consumption	0.6 m3/min 0.8M Pa
Total Power / Total power	5.0 kW/220 V, 50–60 Hz (available in customizable power specifications)
External dimensions	3800× 2000× 3 7 00mm
Total weight/Gross weight	1800 kg

Technical Parameters of GQ-520

Item	Model GQ- 520 Vertical form-fill-seal machine
Packaging speed	30- 50bag/min
Bag-making size	(W) 80-2 5 0 mm(L)50-3 5 0 mm
Bag-making type	Pillow-shaped bag (Pillow), Stand-up bag, Hole-punching device
Packaging film material: Film material:	POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.
Film thickness	0.04-0.08mm
Maximum Film Width / Max film width	5 20 mm
Measurement Range/Filling Range	Max5-2 5 00 ml
Weighting accuracy of electronic combination scales	±0.1-2g
Number of compartments on an electronic scale	10、14、16
Volume of the electronic scale combination for weighing purposes	1.6 L 、2.5L
How to Select an Electronic Combination Scale Device	These components are referred to as feeding bins, aggregate bins, and material distribution devices.
How to Choose an Automatic Feeder	Z-shaped feeder, chain plate inclined feeder
Air Consumption / Air consumption	0.6 m3/min 0.8M Pa
Total Power / Total power	5.0 kW/220 V, 50–60 Hz (available in customizable power specifications)
External dimensions	3800× 2000× 38 00mm
Total weight/Gross weight	1900 kg

Technical Specifications of GQ-720

Item	Model GQ- 720 Vertical form-fill-seal machine
Packaging speed	10- 40bag/min
Bag-making size	(W) 100- 35 0 mm (L) 150- 45 0 mm
Bag-making type	Pillow-shaped bag (Pillow), Stand-up bag, Hole punching device
Packaging film material: Film material:	POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.
Film thickness	0.04-0.08mm
Maximum Film Width / Max film width	7 20 mm
Measurement Range/Filling Range	Max 100- 5 00 0 ml
Weighting accuracy of electronic scales	±0.1- 5 g
How to choose the number of compartments for an electronic scale	Linear type: 2-cylinder capacity 3–5 L, linear type: 4-cylinder capacity 3–5 L. Combination scales: 10,14,16
Volume of the electronic scale combination for weighing purposes	1.6 L 、2.5L
How to Select an Electronic Combination Scale Device	These components are referred to as feeding bins, aggregate bins, and material distribution devices.
How to Choose an Automatic Feeder	Z-shaped feeder, chain plate inclined feeder
Air Consumption / Air consumption	0.8 m3/min 0.8M Pa
Total Power / Total power	6.0 kW/220 V, 50–60 Hz (available in customizable power specifications)
External dimensions / Outside size	3800× 2000× 40 00mm
Total weight/Gross weight	2000 kg
