8 Wheels Capping Machine LPE-CSM08
It is suitable for capping various bottle types across industries such as food, pharmaceuticals, daily chemicals, pesticides, and cosmetics.
The system performs tasks including cap feeding, bottle clamping, material transfer, and capping; it offers high automation, excellent stability, easy adjustment, and requires no spare parts when changing bottle types or caps—only minor adjustments are needed (when paired with a capping unit, automatic cap installation is achievable).
The machine may be updated periodically. Images are for reference only; please refer to the actual product.

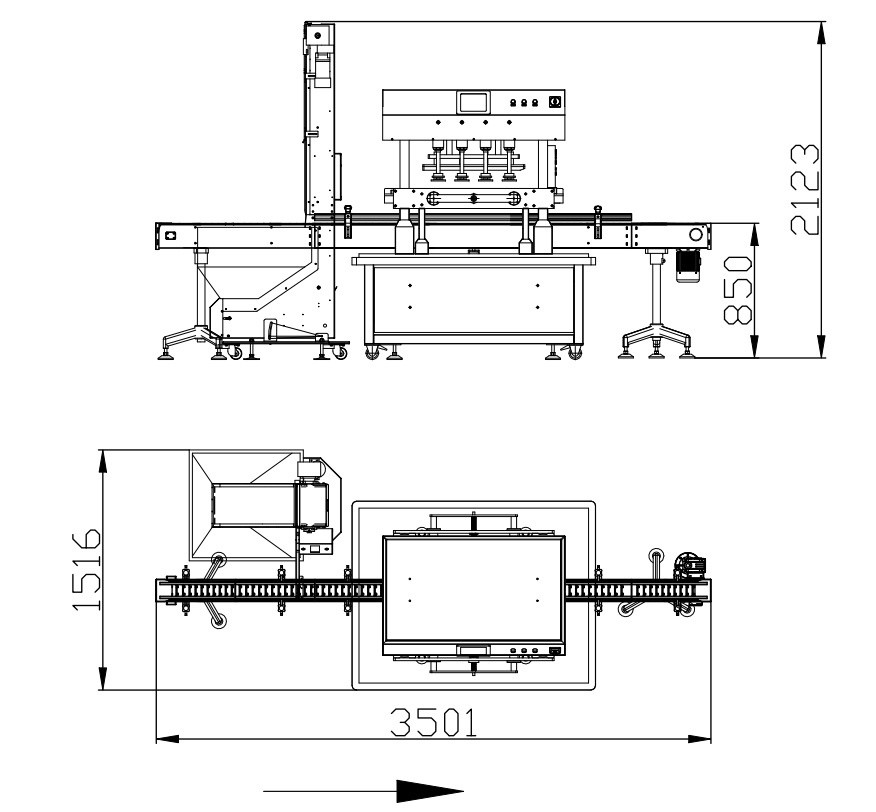

Device Dimension Diagram:
The fully automatic capping machine is designed based on advanced international models, featuring rapid capping speed, high yield rates, and user-friendly operation. It is suitable for capping various bottle types across industries such as food, pharmaceuticals, daily chemicals, pesticides, and cosmetics. The system performs tasks including cap feeding, bottle clamping, material transfer, and capping; it offers high automation, excellent stability, easy adjustment, and requires no spare parts when changing bottle types or caps—only minor adjustments are needed (when paired with a capping unit, automatic cap installation is achievable). Custom configurations can be selected according to specific requirements.
running mode ：
The device is equipped with four sets of wheels. The first set rotates counterclockwise to align the threaded cover with the bottle mouth threads. The second, third, and fourth sets rotate clockwise to secure the cover in place.
Capping speed: 3,600–6,000 bottles/hour (specifically depending on the actual bottle size and cap compatibility)
Power Supply: 220V 50–60 Hz
Total power: 2 kW
Applicable bottle diameter range (mm): 30–210 mm
Applicable lid diameter range (mm): 20–150 mm
Applicable product height range (mm): 80–280 mm
Net weight: 300 kg | Gross weight: 360 kg
Device dimensions: 2000 mm in length, 900 mm in width, and 1600 mm in height
Configuration Table (Standard configuration; may vary slightly in actual production and is subject to final specifications)
