Fully Automatic Vertical Granule Weighing and Packaging Machine (for Film Wrapping and Premade Bags) GQ-420/520

  • Fully Automatic Vertical Granule Weighing and Packaging Machine (for Film Wrapping and Premade Bags) GQ-420/520
  • Fully Automatic Vertical Granule Weighing and Packaging Machine (for Film Wrapping and Premade Bags) GQ-420/520

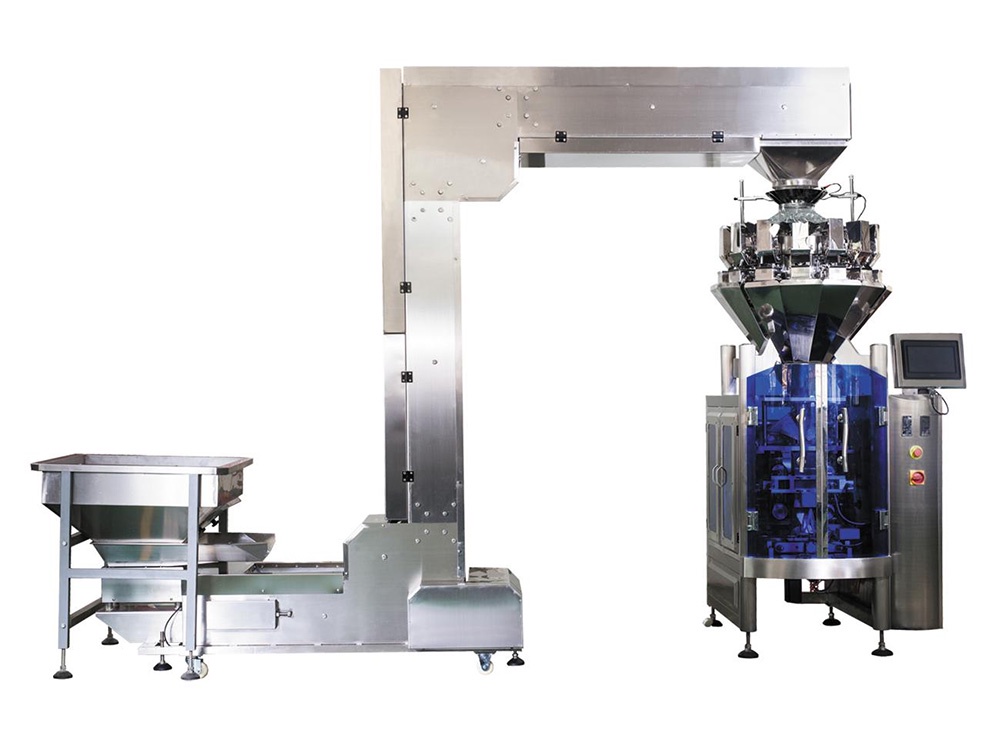

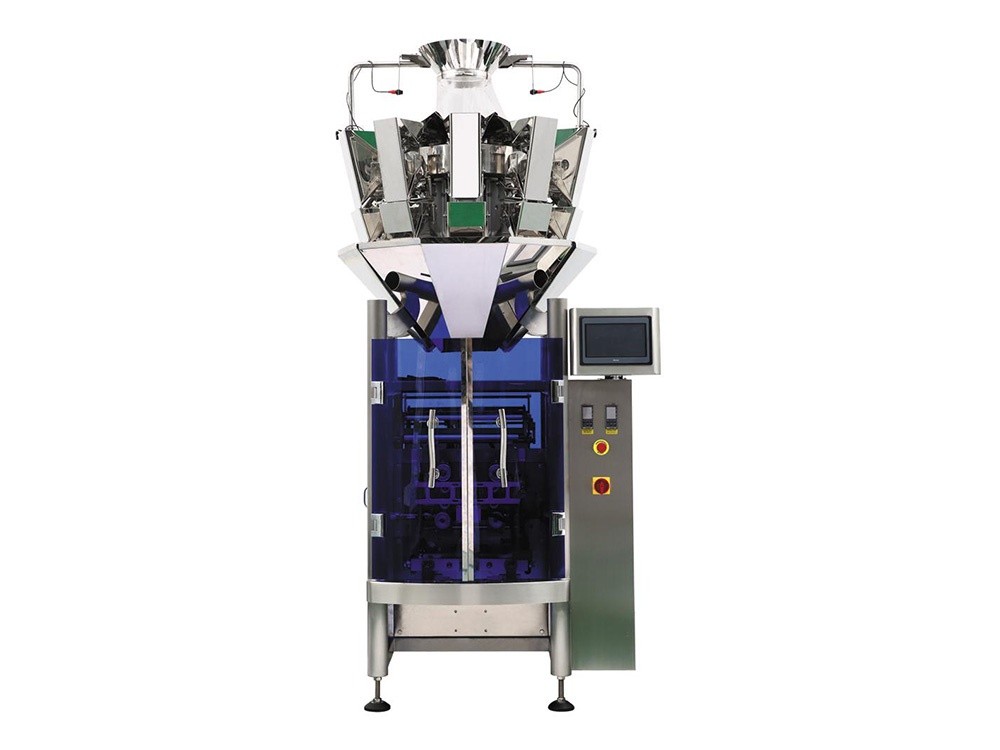

Fully Automatic Vertical Granule Weighing and Packaging Machine (for Film Wrapping and Premade Bags) GQ-420/520

For spaces with limited height, alternative options are available
16615675260、18668973789
0086 13688630116
pangqin@guoqiangpackaging.com
WhatsApp
Applicable Products
Applicable bag type
Machine advantage
Parameter table
Customization options

Suitable for automatic packaging of granular and flaky materials, such as snacks, puffed foods, dried fruits, candies, rice, salt, pet food, etc.




Packaging Shape:



Pouch-shaped bag

Self-standing folded corner ba

Hangable pocket bag





GQ-420

GQ-520



Main Performance and Structural Features

(1) For spaces with limited height, alternative options are available

(2) The PLC fully computerized control system features a human-machine interface and a large touchscreen display, offering simple and intuitive operation.

(3) Servo-driven film transport system with pneumatic control, ensuring precise positioning and outstanding overall performance.

(4) Equipped with a smart thermostat for precise temperature control, ensuring an aesthetically pleasing and smooth sealing surface.

(5) High-precision weight sensors enable instantaneous accurate measurement.

(6) Comprehensive automatic alarm protection features minimize wear and tear.

(7) This machine can automatically complete the entire packaging process, including material feeding, weighing, bag formation and filling, date printing, inflation (or deflation), and finished product output.


Bag shapes: This machine can produce pillow-shaped bags, vertical corner bags, and bag with perforations according to customer requirements.


Technical Parameters of GQ-420

Item

Model GQ-420 Vertical form-fill-seal machine

Packaging speed

40- 60bag/min

Bag-making size

(W)60-2 00 mm(L)50-3 00 mm

Bag-making type

Pillow-shaped bag (Pillow), Stand-up bag, Hole-punching device

Packaging film material: Film material:

POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.

Film thickness

0.04-0.08mm

Maximum Film Width / Max film width

420 mm

Measurement Range/Filling Range

Max5-2000 ml

Weighting accuracy of electronic combination scales

±0.1-2g

Number of compartments on an electronic scale

10

Volume of the electronic scale combination for weighing purposes

1.6 L 、2.5L

How to Select an Electronic Combination Scale Device

The pattern is called a "dou".

How to Select an Automatic Feeder

Z-shaped feeder, chain plate inclined feeder

Air Consumption / Air consumption

0.6 m3/min 0.8M Pa

Total Power / Total power

5.0 kW/220 V, 50–60 Hz (available in customizable power specifications)

External dimensions / Outside size

3800× 1200× 27 00mm

Total weight/Gross weight

1300 kg

Technical Specifications of GQ-520

Item

Model GQ- 520 Vertical form-fill-seal machine

Packaging speed

30- 50bag/min

Bag-making size

(W) 80-2 5 0 mm(L)50-3 5 0 mm

Bag-making type

Pillow-shaped bag (Pillow), Stand-up bag, Hole-punching device

Packaging film material: Film material:

POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.

Film thickness

0.04-0.08mm

Maximum Film Width / Max film width

5 20 mm

Measurement Range/Filling Range

Max5-2 5 00 ml

Weighting accuracy of electronic combination scales

±0.1-2g

Number of compartments on an electronic scale

10

Volume of the electronic scale assembly for weighing purposes

1.6 L 、2.5L

How to Select an Electronic Combination Scale Device

These components are referred to as feeding bins, aggregate bins, and material distribution devices.

How to Choose an Automatic Feeder

Z-shaped feeder, chain plate inclined feeder

Air Consumption / Air consumption

0.6 m3/min 0.8M Pa

Total Power / Total power

5.0 kW/220 V, 50–60 Hz (available in customizable power specifications)

External dimensions / Outside size

3800× 1200× 28 00mm

Total weight/Gross weight

1400 kg


Electrical Equipment Configuration

Number

New Name

B rand

C ountry

1

Touch-sensitive screen

Weinview Control System

Taiwan

2

P LC

Mitsubishi MUTISUBISH

Japan

3

Servo motor

Delta

Taiwan

4

Horizontal Cylinder – Horizontal gas-carrying cylinder

SMC

JAP

5

Vertical cylinder – Vertical sealing gas cylinder

SMC

JAP

6

Cutting cylinder – The gas cylinder for the cutting blade

SMC

JAP

7

Two-unit system (a two-piece assembly)

SNS

JAP

8

Solid-state relay

Omron OMRON/Yangming FOTEK

JAPAN/ TAIWAN

9

Intermediate State Relay

OMRON

JAPAN

10

Photoelectric eye

AUTONICS/BAIDELI

KOREA/TAIWAN

11

Power source

MW

TAIWAN

12

Transducer Frequency Converter

HuiChuan

CHIAN SHENZHEN

13

Winding Motor – Film-Winding Motor

TAIBANG

TAIWAN

14

Control Temperature Thermometer

Yatay

CHINA SHANGHAI

15

Access Switch – Open/Close Switch

yangming meridians FOTEK

TAIWAN

16

Printer Code Generator

Tianyi

CHIAN XIAMEN Xiamen

17

Electrovalve: A two-unit system

Mindman Golden Energy

TAIWAN
