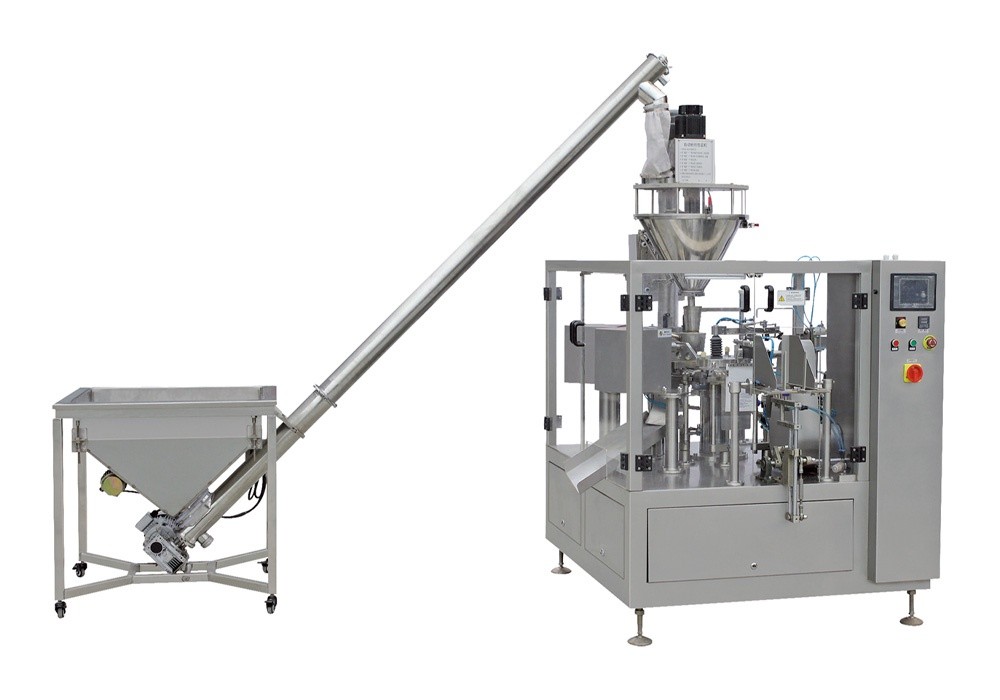

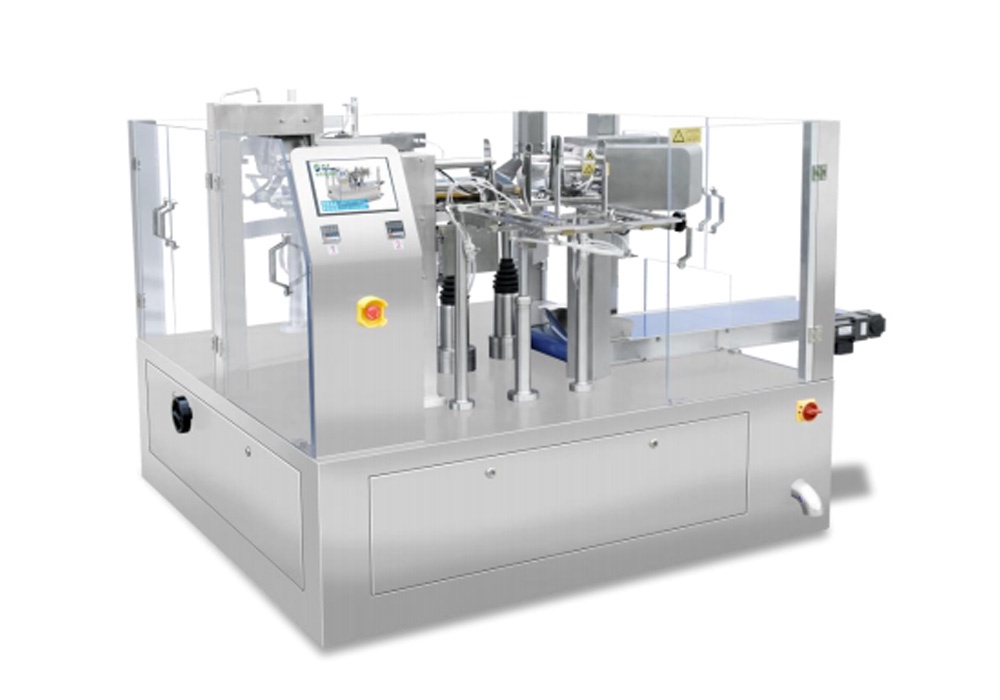

Fully Automatic Powder Bag Filling and Packaging Machine

productive power

20–55 bags per minute

10-5: 0 bags per minute

Packaging Weight

10- 1000 g

500- 3000 g,

Packaging Bag Size

W: 60-230mm  L:150-450 mm

W： 160mm-300mm;  L：450mm

Packaging Precision

Packaging weight ≤ 100 g: tolerance ≤ 0.5–1 g; packaging weight 100–1000 g: tolerance ≤ 0.5%–1%; packaging weight>1000 g: tolerance ≤ 0.25%–0.5%.

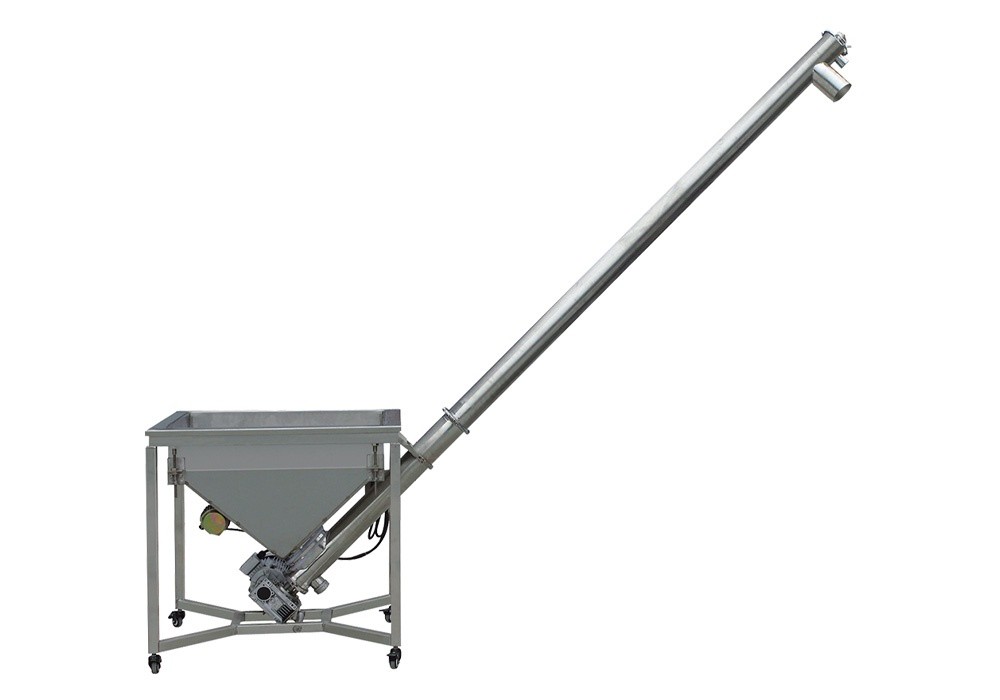

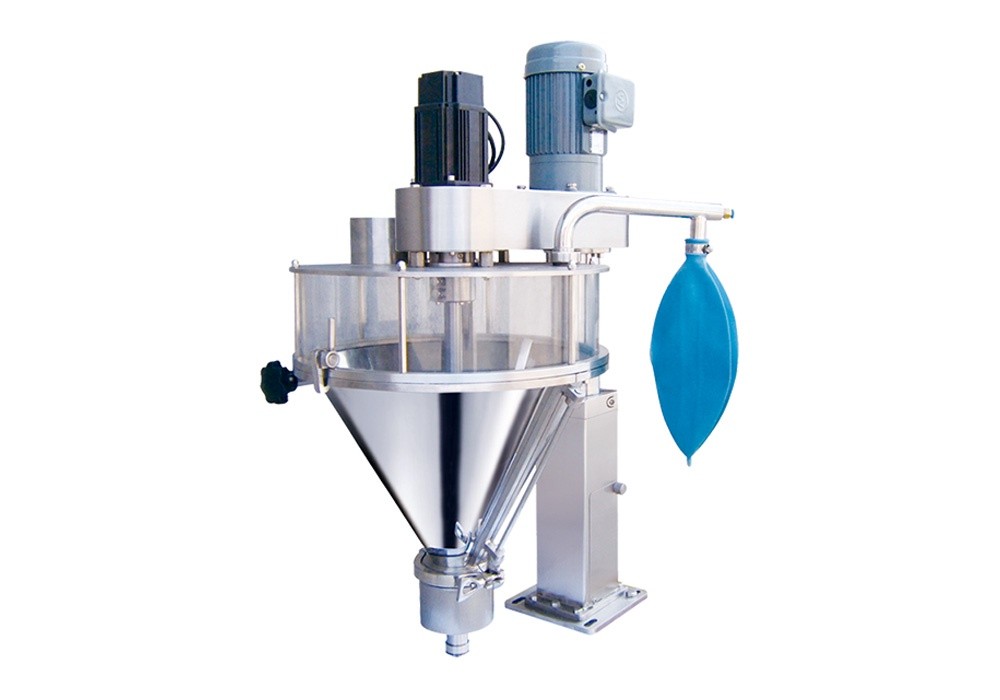

Material Feeder

Screw feeder

Use Power Source

Three-phase 380 V ±10%,50 Hz; compatible with voltages in various countries

Power Usage

Approximately 6.0 kW

Approximately 7.0 kW

Compressed air consumption rate

0.6 m3/min 0.8M Pa

Machine External Dimensions

3700* 2300* 370 0mm

machine weight

Approximately 5000 kilograms

materials of equipment

304 Stainless Steel

flow of work

Top bag opening, labeling, bag unsealing and expansion; First material feeding step; Second material feeding step; straightening; sealing; shaping (final product conveyance) – workstation requirements vary depending on bag type and material specifications.

Electrical System

The touchscreens, PLCs, frequency converters, and other components are manufactured under the Siemens brand, while the temperature control meters are from Hubang.

pneumatic component

Japans SMC (standard components); Taiwans Yadeke (non-standard components); Festo (thermal sealing and forming solutions); Vacuum pumps from Haoliwang.

Driving Method

Mechanical Transmission (Full Mechanical Mode: Cam-Gear-Lever System)

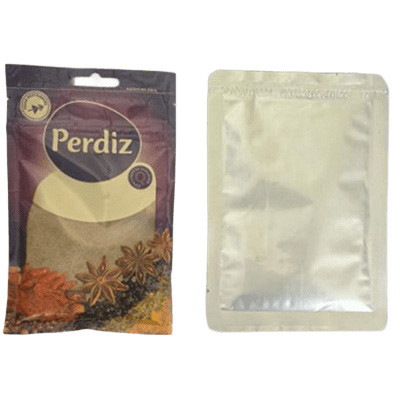

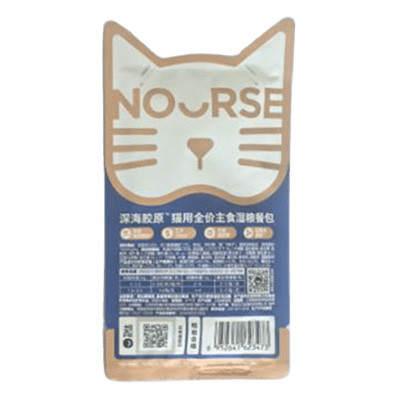

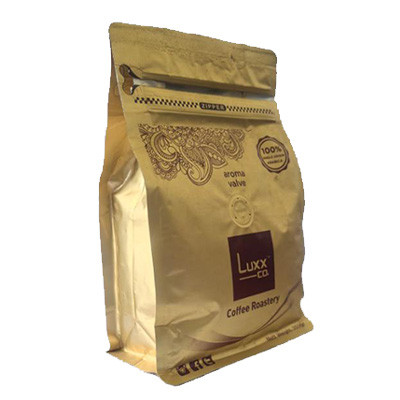

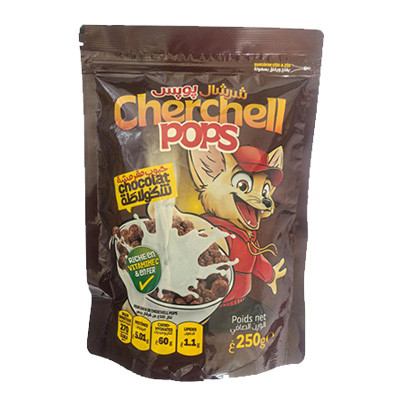

Bag Type

Flat bags, handbags, stand-up bags, zipper bags, paper bags, etc.

Sealing Method

First sealing, followed by secondary sealing and reshaping to ensure neat and aesthetically pleasing closure.

service environment

Room temperature: 10–40°C; relative humidity: 30–90%; no condensation, no corrosive gases, no dust or other adverse environmental conditions.

1#

Automatic bag loading: Multiple bags are manually placed into the bag feeder (top or bottom feeding), followed by automatic vacuum bag suction for installation.

2#

Reserve a printing station with options for ribbon printing, inkjet printing, thermal transfer, or laser printing (printers provided by the customer).

3#

Bag Opening: The workstation consists of an upper bag opener, a blower, and a bag separator. The upper bag opener performs mechanical actions, using a suction cup to create vacuum and open the bag opening. Simultaneously, the dual-claw arms move along guide rails toward the center of the bag, positioning themselves for the suction nozzle to pull the bag laterally without causing it to detach or rebound. To prevent bag opening rebound, the blower works in coordination with the vacuum suction cup. To avoid deformation of the bag opening after opening, the separator undergoes the following sequence: ascent → bag expansion → detection of opened state → synchronous relocation to Station 3 → ascent → reversal back to Station 2.

4#

blank

Use the accompanying equipment

5#

Reserved Workstation

6#

seal

Hot-sealed closure, with optional mesh or striped sealing patterns; the closure is smooth, tight, and free of edge defects.

7#

seal

Perform a secondary sealing inspection to ensure proper sealing.

8#

output

The packaged items are then fed onto the conveyor belt and transported to the next processing stage.
